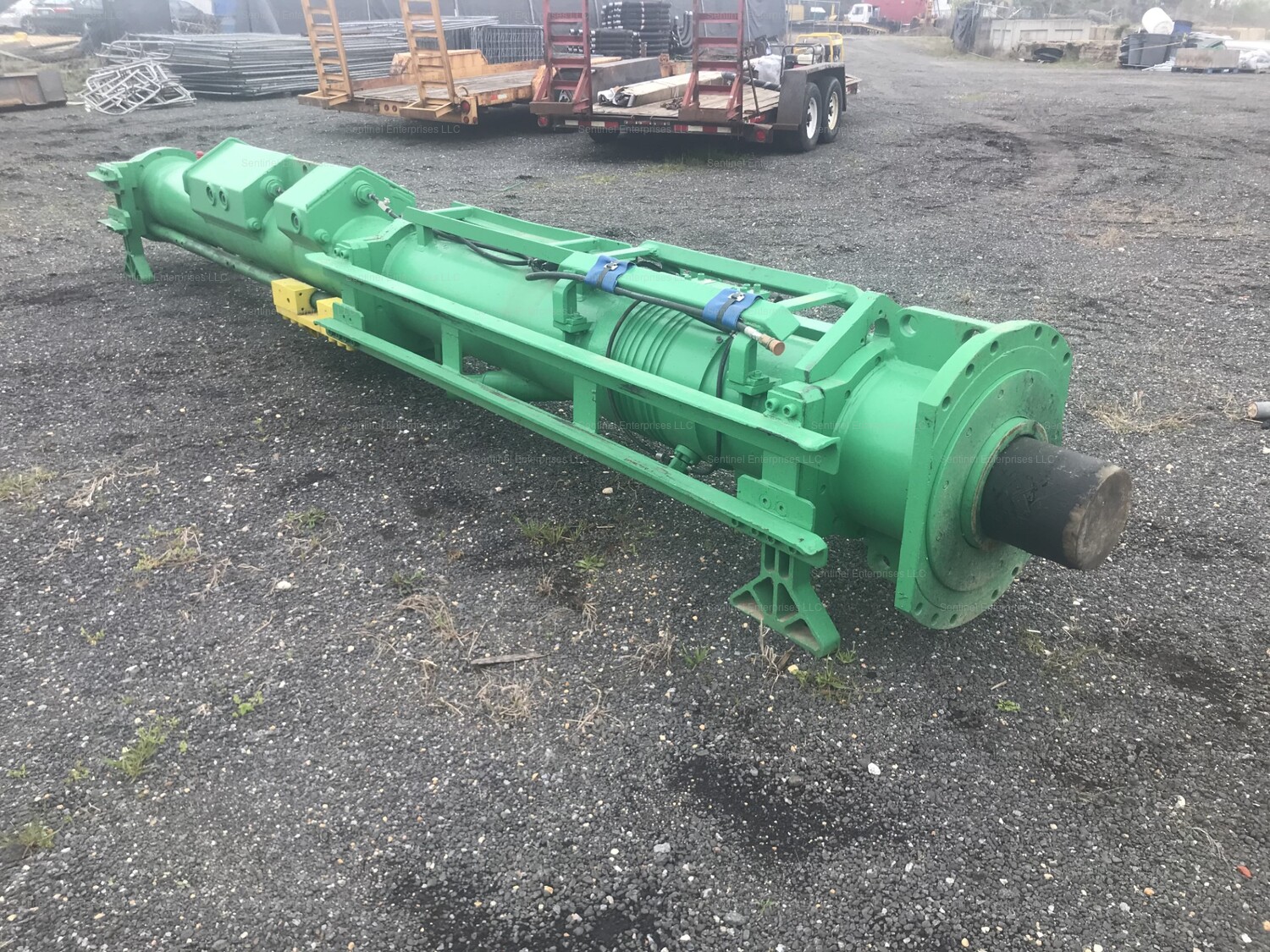

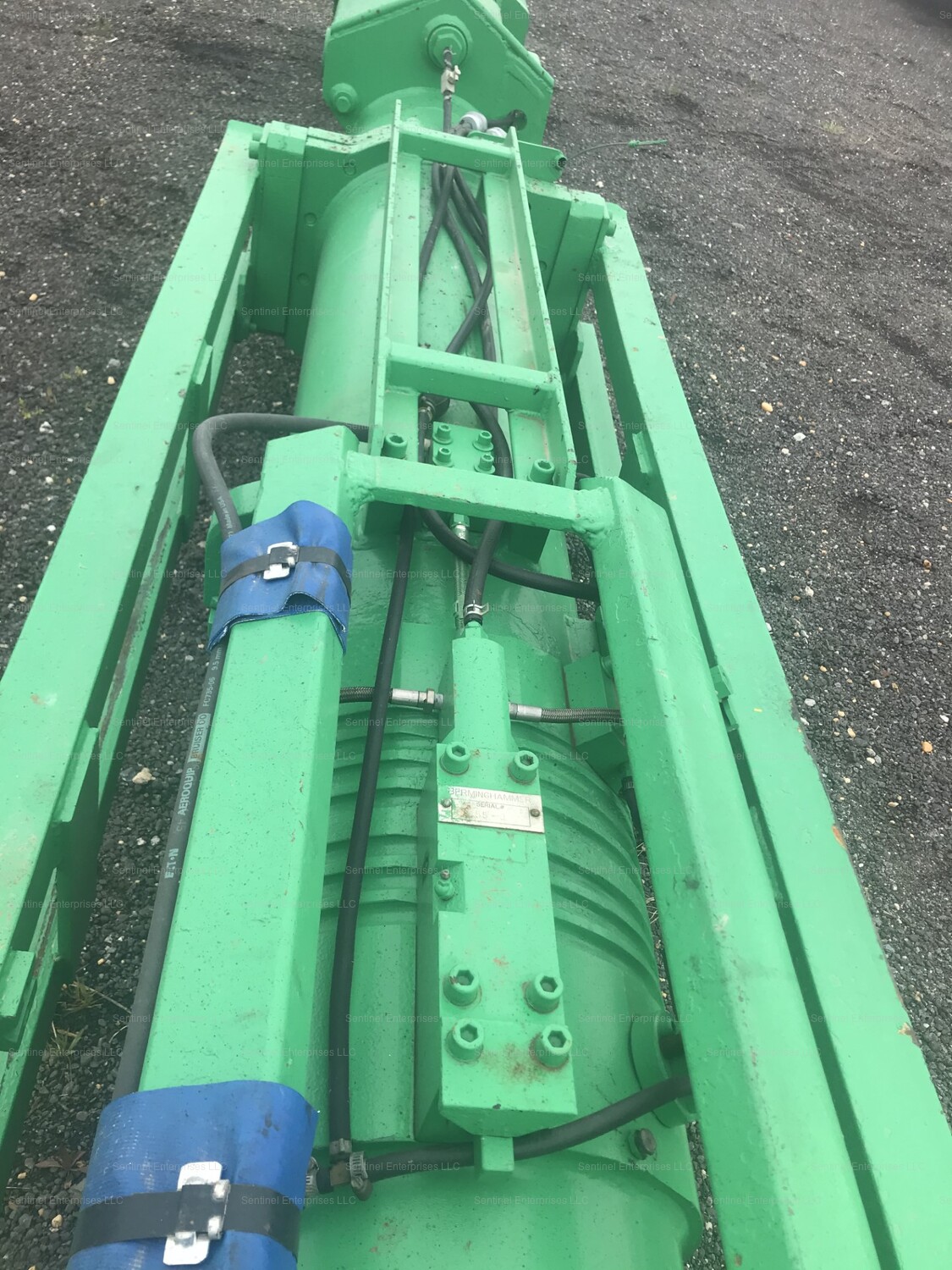

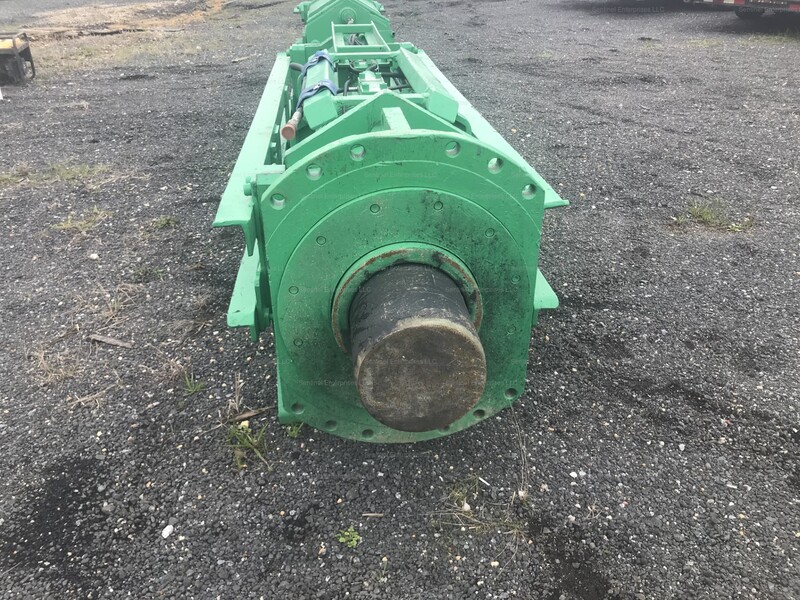

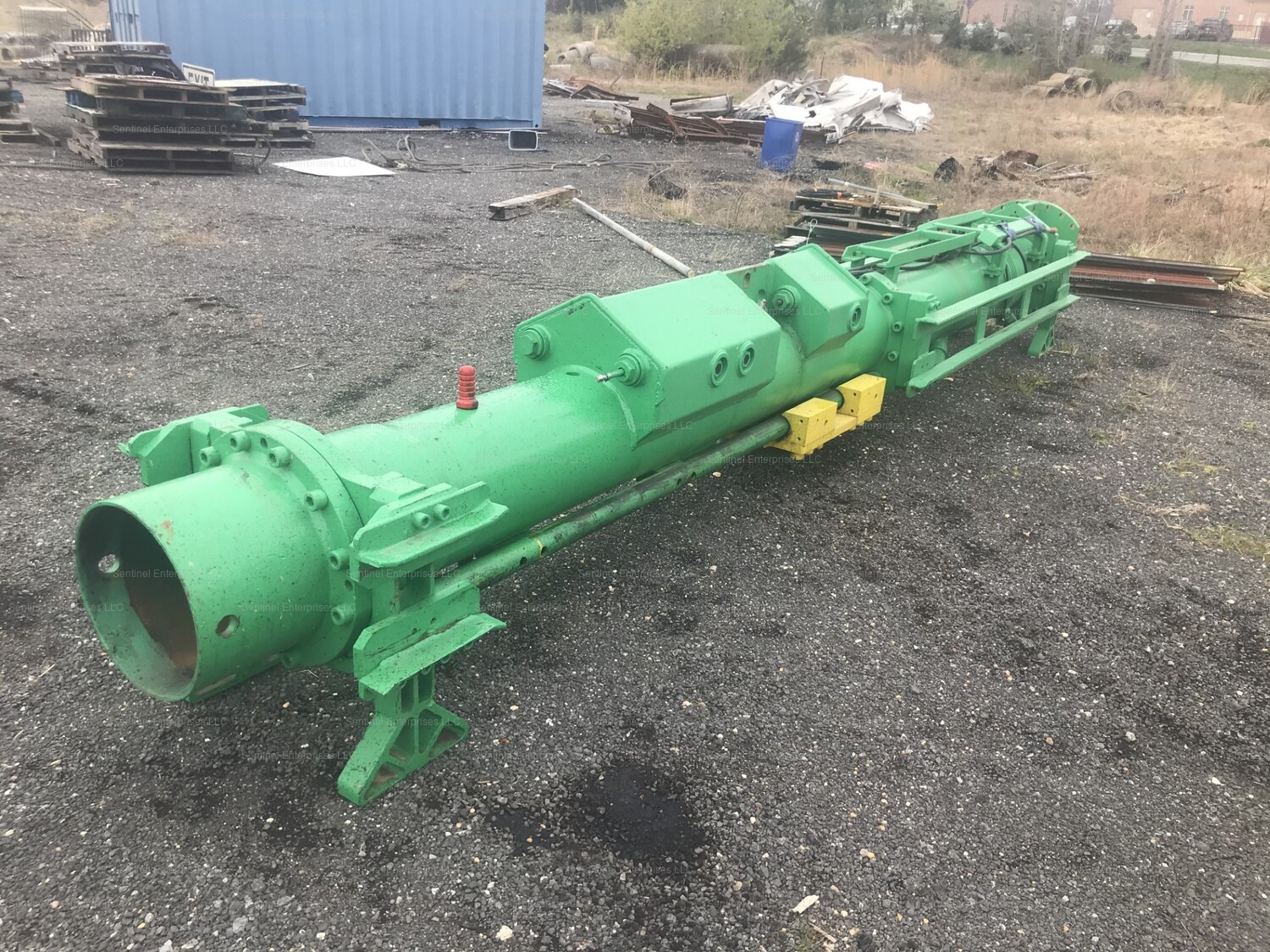

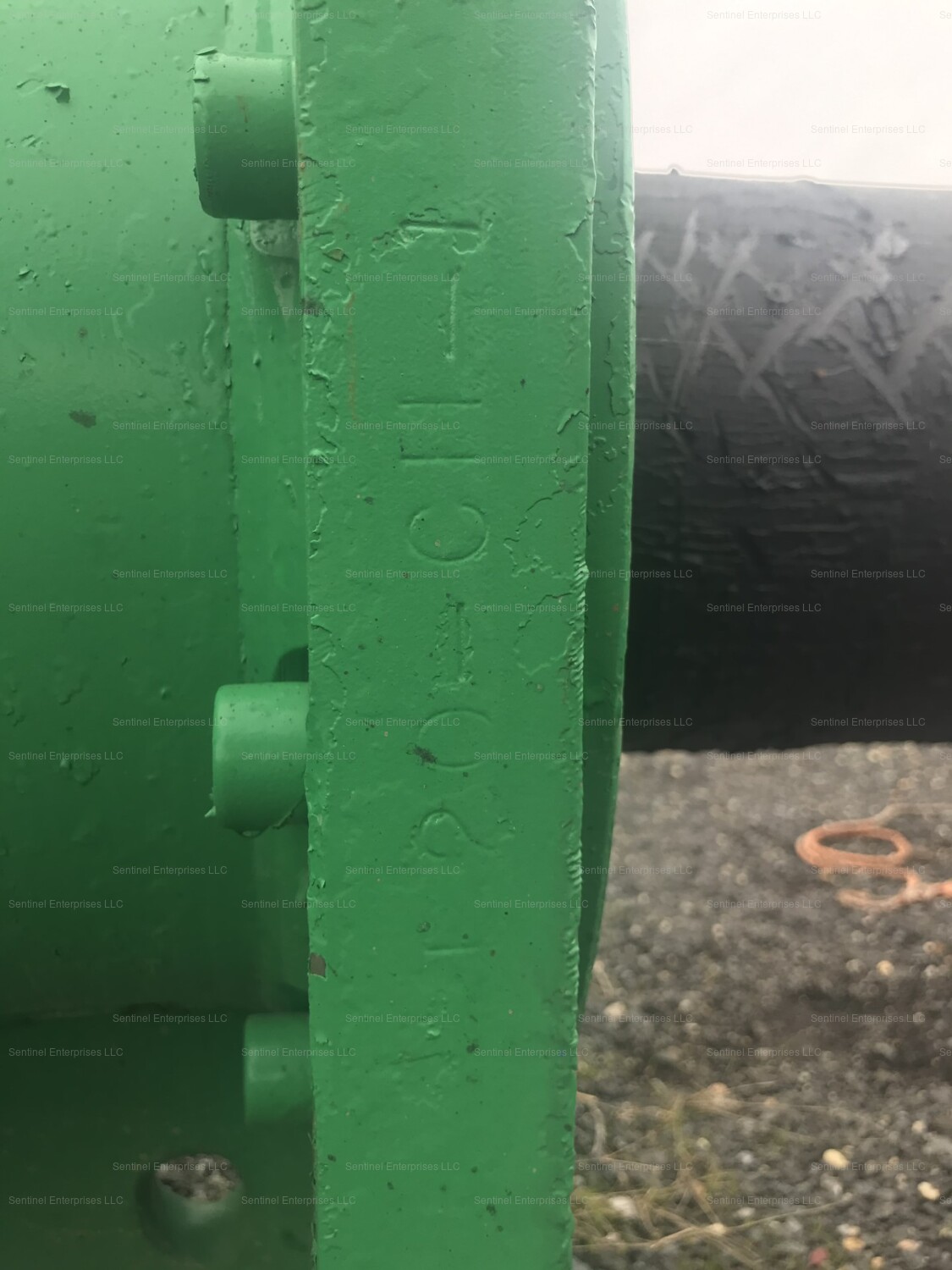

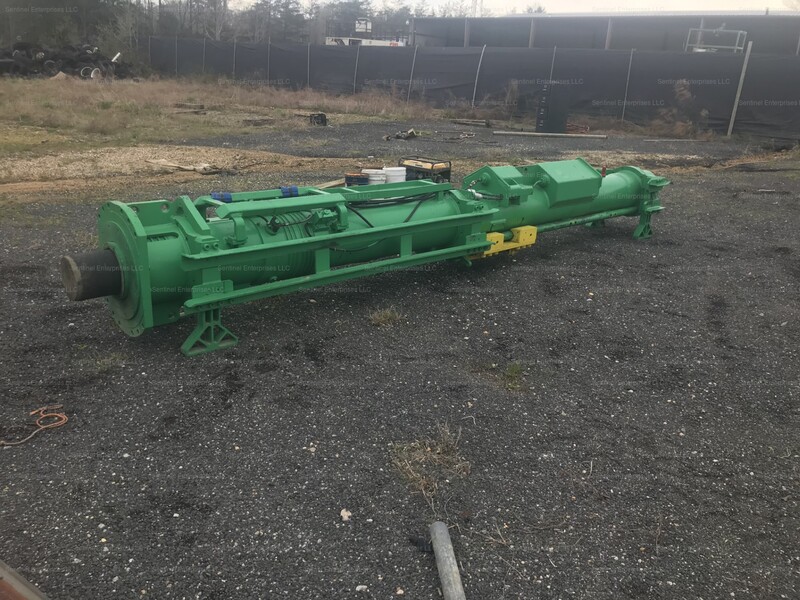

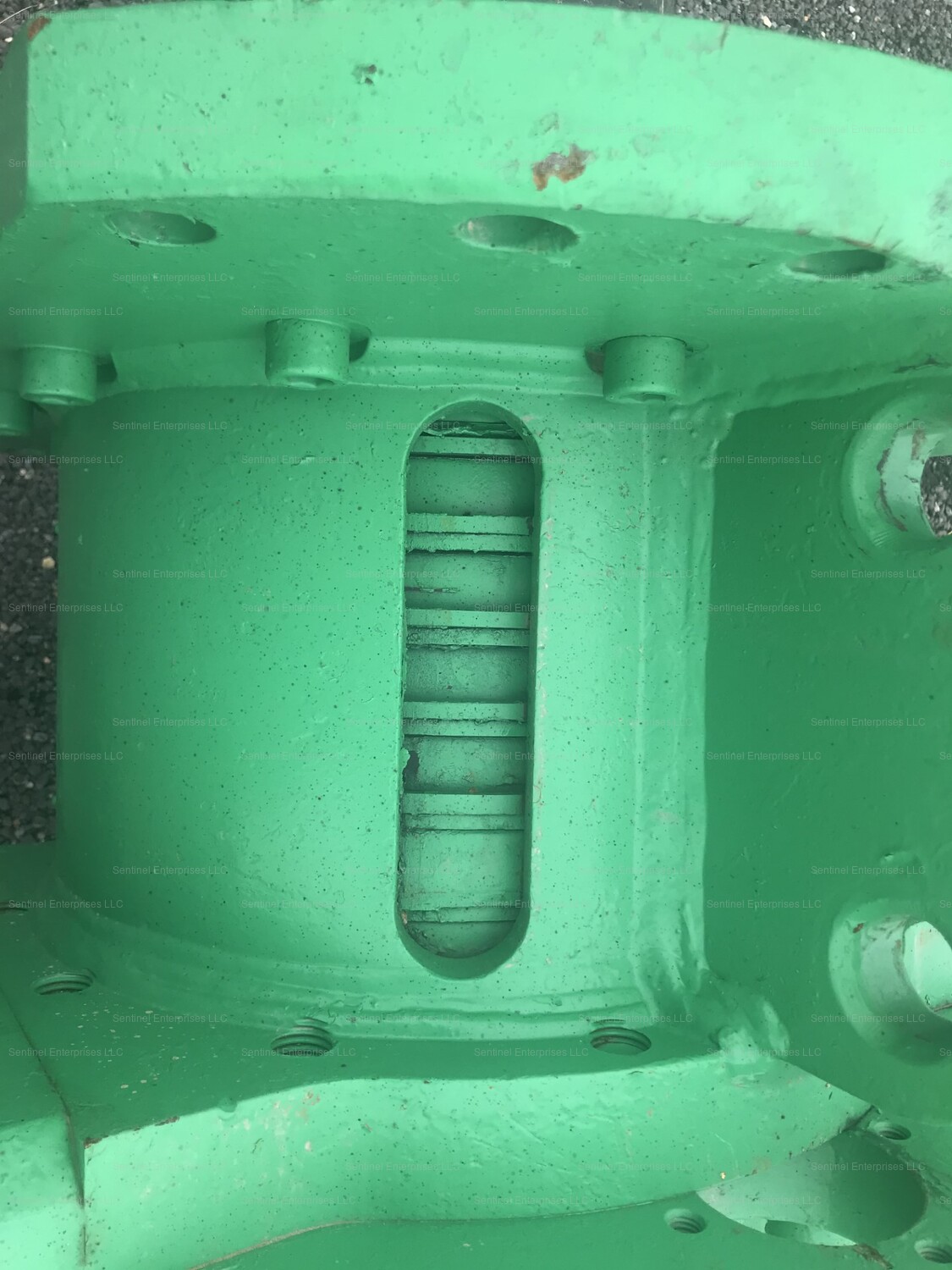

2003 Berminghammer B21 Pile Driver
Item Number: 1
QTY: 1
Operational Specifications Ram mass: 4,630 lbs (2 100 kg) Rated Energy: 53,200 ft▪lbs (72 kJ) Stroke at Rated Energy: 11.5 ft (3.5 m) 35 blows per minute Maximum Physical Stroke: 13.1 ft (4.0 m) Range of Operation: 4.5-11.5 ft (1.4-3.5 m) 56-35 blows per minute Kinetic Energy at Rated Stroke: 32,010 ft-lbs (43.4 kJ) Hammer Weight – bare hammer: 9,300 lbs (4 220 kg) Weight with Typical USA-Style Box Lead Guides: 9,800 lbs (4 450 kg) 26 in (660 mm) guides Typical Direct-Drive Housing: 1,850 lbs (840 kg) 21 in (530 mm) opening Total Typical Operating Weight: 11,650 lbs (5 280 kg) (with guides, trip, and drive housing) Fuel Tank Capacity: 12.0 US Gal. (45 L) Oil Tank Capacity: 4.0 US Gal. (15 L) Overall Length: 17.5 ft (5.3 m) Length including Direct-Drive Housing: 19.8 ft (6.0 m) Minimum Box Lead size: 21 in (533 mm)
